Mini Electric Wire Rope Hoist PA 600 and PA 1200, 300 to 1200 kg
Single phase mini electric wire rope hoists with 20 m lift. The PA 600 lifts 300 kg on single line or 600 kg on double line, and the PA 1200 lifts 600 kg or 1200 kg.
- PA 600: 300 kg single line, 600 kg double line
- PA 1200: 600 kg single line, 1200 kg double line
- Single phase, 1.5 HP (PA 600) and 3 HP (PA 1200)
- 20 m lift on both models
Mini Electric Wire Rope Hoist: models & specifications
Prices on request, GST extra| Code | Model | Capacity | Lift / length | Rope / chain | Motor | Supply | Details | Price |
|---|---|---|---|---|---|---|---|---|
| EWR-01 | PA 600 × 20 m | 300 / 600 kg | 20 m | 5 mm wire rope | 1.5 HP | Single phase | Single line 300 kg, double line 600 kg, 20 m lift | Get price |
| EWR-02 | PA 1200 × 20 m | 600 / 1200 kg | 20 m | 8 mm wire rope | 3 HP | Single phase | Single line 600 kg, double line 1200 kg, 20 m lift | Get price |
About the mini electric wire rope hoist

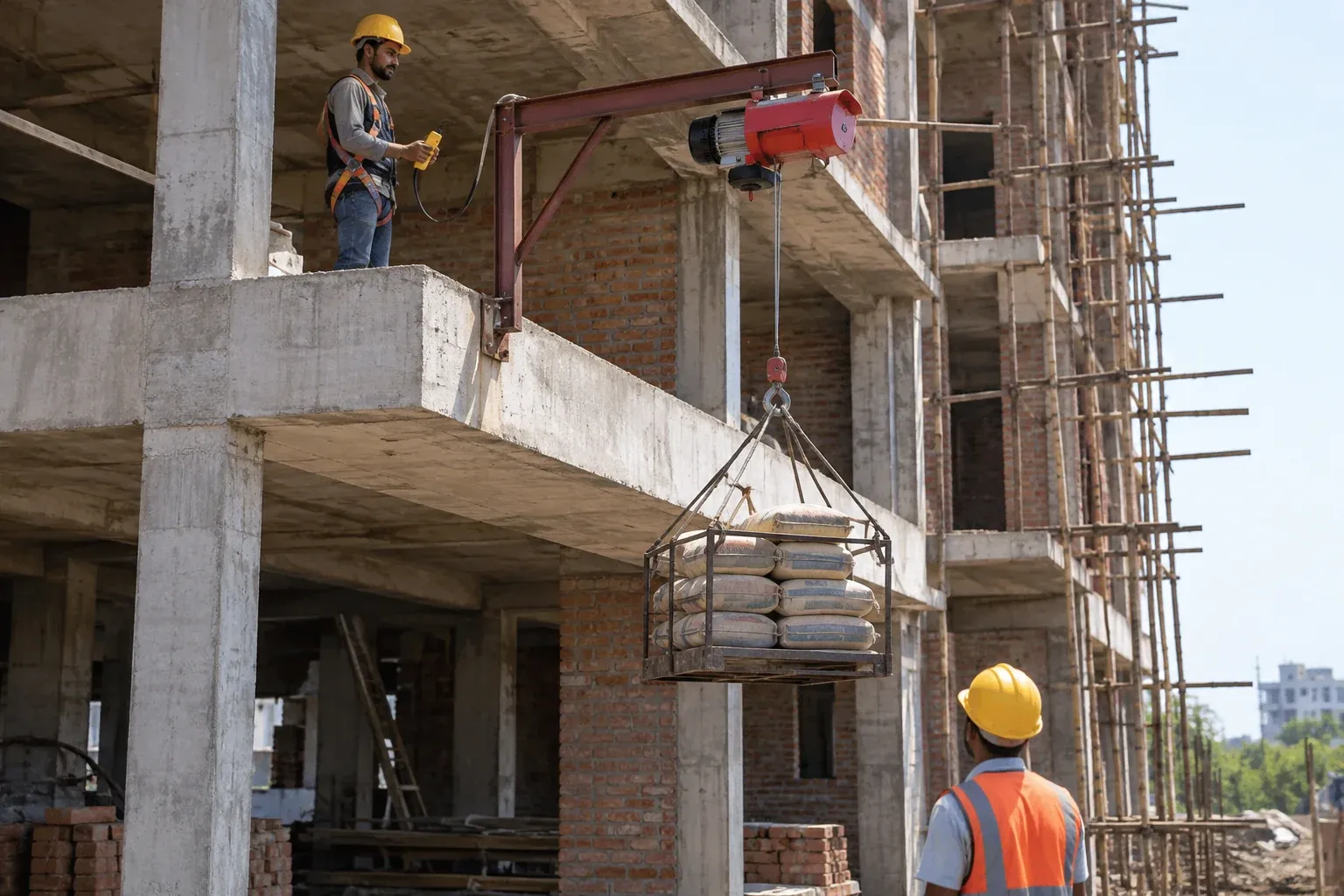

The mini electric wire rope hoist is a small, light hoist that winds a steel wire rope onto a drum. You see it in shops, godowns, small workshops and on residential construction, lifting material to a loft, mezzanine or upper floor. It is fixed to a beam, bracket or stand and run from a push button pendant.
We sell two models, both single phase with 20 m of lift, which reaches several floors and is far more than a standard chain block gives. The PA 600 has a 1.5 HP motor and 5 mm wire rope. The PA 1200 has a 3 HP motor and 8 mm wire rope.
The number in the model name is the double line load. On a single line the PA 600 lifts 300 kg and the PA 1200 lifts 600 kg. On double line with the pulley block, they lift 600 kg and 1200 kg. Tell us your heaviest load and lift height on WhatsApp and we will send today's price.
Fix the hoist to a beam or bracket that can carry the load plus the hoist itself, keep a few turns of rope on the drum at the lowest point, and keep people out from under the load. For heavier loads or long hours of daily work, look at our electric chain hoists or the electric hoist cum winch.
Features
- PA 600: 300 kg single line, 600 kg double line
- PA 1200: 600 kg single line, 1200 kg double line
- Single phase, 1.5 HP (PA 600) and 3 HP (PA 1200)
- 20 m lift on both models
- 5 mm wire rope (PA 600), 8 mm wire rope (PA 1200)
- Compact and light to mount
- Push button pendant control
Where it's used
- Lifting material to lofts and mezzanines
- Small building and renovation sites
- Godowns and shop stores
- Light workshop lifting
- Raising goods to upper floors of shops
How to choose
- Choose by your heaviest load: the PA 600 takes 300 kg on single line or 600 kg on double line, and the PA 1200 takes 600 kg or 1200 kg.
- Check that 20 m of rope covers your lift with a few turns left on the drum.
- Make sure the beam or bracket can take the load plus the weight of the hoist.
- For heavier or continuous work, look at an electric chain hoist.
Want to know the price? Just ask.
Steel prices change every week, so we share today's price directly. Tell us the product and size and we'll reply on WhatsApp with the price, GST and delivery to your city.
- One piece or a hundred: same quick reply
- Delivery cost included in the quote
- Reply within [REPLY TIME] on working days
Mini Electric Wire Rope Hoist: common questions
What does PA 600 or PA 1200 mean?
They are the model names, and the number is the load on double line. The PA 600 lifts 300 kg on a single line and 600 kg on double line with the pulley block. The PA 1200 lifts 600 kg and 1200 kg the same way.
Does it need three phase power?
No. Both models run on single phase. The PA 600 has a 1.5 HP motor and the PA 1200 a 3 HP motor.
How high can it lift?
Both models come with 20 m of wire rope.
What rope does it use?
The PA 600 uses 5 mm wire rope and the PA 1200 uses 8 mm wire rope.
Can I use it on a building site?
Yes, it is often used to raise material to upper floors. Mount it firmly and keep the area below clear of people.
Delivered across South India & Goa
Shipped by road from our NR Road store in Bengaluru.
